WF10X Optical Metallurgical Microscope

Name: WF10X Optical Metallurgical Microscope
Brand: Phidix
Price: 1 USD

Brand Name : Phidix

Model Number : M10117

Certification : IATF16949, CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : 1 PC/Carton

Customization : OEM, ODM

Color : White

Warranty : 1 year

Drawtube : Binocular

Theory : Biological Microscope

Lead-time : 15-20 Work Days

Eyepiece : WF10X/18mm

Nosepiece : 4-Position

Stage : 150*140mm/75*50mm

Contact Now

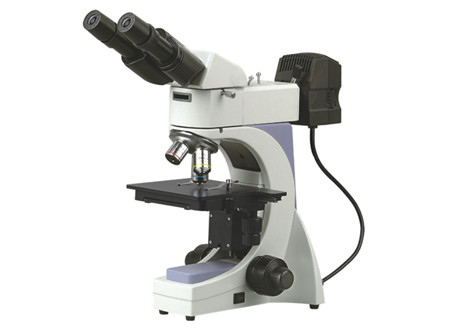

Binocular Metallurgical Microscope For PCB Inspection

M10117 Binocular Metallurgical Microscope For PCB Inspection. The Microscope is widely used for PCB board, LCD display and metal structure observation and inspection. With Ingenious stand and convenient operation, it will be the best choice for operators.

Features:

- Kohler illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W.

- 4-Position nosepiece offering more magnification choice

Item	Description / Value
Eyepiece:	WF10X/18mm
View tube:	Binocular Head
Objective:	Infinity plan achromatic objectives, 4X, 10X, 40X
Nosepiece:	4-position, quadruple
Focusing system:	Coaxial coarse/fine focus system
Stage:	Double layer mechanical stage, 150140mm, moving range: 7550mm
Illumination:	Kohler illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W.
Filters:	Blue, green, yellow & ground glass

WF10X Optical Metallurgical Microscope
