Trinocular 100x100mm Optical Metallurgical Microscope Measuring HD Eyepiece

Phidix Motion Controls (Shanghai) Co., Ltd.
Contact Now

Trinocular 100x100mm Optical Metallurgical Microscope Measuring HD Eyepiece

Brand Name : Phidix

Model Number : M10101

Certification : IATF16949,CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : Carton

Color : White+Black

Customization : OEM, ODM

Packing : 1 PC/Carton

Warranty : 1 Year

Drawtube : Trinocular

Theory : Metallurgical Microscope

Application : Machinery, Electronics, Plastics etc.

Eyepiece : CFI 10x10 HD Eyepiece

Contact Now

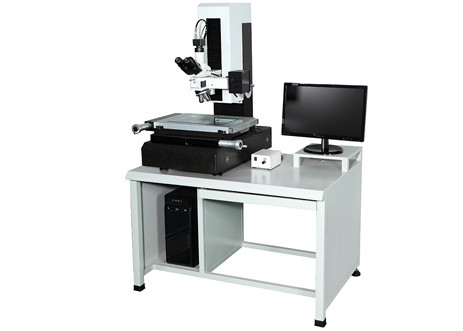

Tool-maker Vision Measurement Machine Microscope Instrument

M10101 Tool-maker Vision Measurement Machine Microscope Instrument Video Measuring Microscope, is an integrated high-magnification, micron-industry-aimed measuring instruments. Combined with powerful microscopic inspection technology, has been widely applied in many fields.

Features:

- Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.

- To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance, engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.

- To measure angle, for example, angle measurement for dials, templates, gauges, drilling template and those parts with complex structure.

- With PC and powerful metrology software, not only a microscope, but also a vision measuring system, can achieve professional measurement data management.

Item Description / Value
Head: Trinocular Head
Eyepiece: CFI 10x10 HD Eyepiece
Nosepiece: Quadruple Nosepiece
Objective: 5 sets of Objectives
X/Y measurement accuracy: 1.5 μm+L/150
Z axis measurement accuracy: 1.0 μm+L/150
Measuring Range:

X-axis: 100mm minimum

Y-axis: 100mm minimum

Z-axis: 200 mm minimum

Lens barrel: Trinocular Eyepiece Tube
Minimum resolution: 0.5/0.1μm
Stage: 100x100mm Precise Stsge
Camera: DS-Vil Color Camera Head 2 million pixel HD CCD
Transmisson System: Precision Grinding of C3 ball screw

Trinocular 100x100mm Optical Metallurgical Microscope Measuring HD Eyepiece
