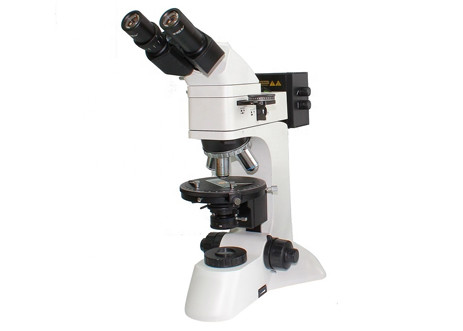

Binocular Trinocular Petrographic Microscope With Rotating Round Stage For Mineralogy And Geology Research
M10113 Binocular Trinocular Petrographic Microscope With Rotating Round Stage For Mineralogy And Geology Research It is a professional polarizing microscope specially designed for mineralogy and geology research. .
Features:
- It is a professional Polarizing Metallurgical Microscope with infinity achromatic optical system.
- It can work in plane polarization observation, cross polarization observation and conoscopic observation.
- It is widely used in geology, chemistry, medical research and material analysis.
- It is fit for metal, asbestos fiber, medical drug powder, industrial using powder, cements, mineral, core analysis, PCB, asphalts, diamond cutter, mobile screen, textile, etc.
- It can work with camera and connect to computer, take photo and record video, which make the report easily and clear.
- With a measurement camera, it can measure the size of the observing detail.
| Item | Description / Value |
| Optical system: | Infinity achromatic optical system |
| View tube: | Hinge trinocular, 30 ° incline, Splitting ratio: 100: 0 or 0:100 |
| Eyepiece: | WF 10 × (Φ22mm) or graduated ocular 10× (Φ22mm, 0.1mm/graticule) |
| Objective: | Non-stress achromatic plan long working distance metallurgical objective(Optional): PL L 5X/0.12, working distance: 26.1mm. PL L10X/0.25, working distance: 20.2mm. PL L 20X/0.4, working distance: 8.8mm. PL L 50X/0.7, working distance: 3.68mm. PL L 100X/0.85, working distance: 0.4mm. |
| Nosepiece: | Four-hole converter /Five-hole converter |
| Stage: | Round rotating stage 150mm. |
| Focusing mechanism: | Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable Fine adjustment accuracy: 0.002mm. |
| Light source: | 6V/30W halogen lamp, brightness is adjustable. Polarizer and Analyzer: can rotate 360 °, with scale and fine adjustment vernier. With field stop and aperture stop. |
| Dark field: | Dark field condenser. |
| Polarization: | Plane polarization observation, cross polarization observation, conoscopic observation. |
| Coupling: | Center adjustable push-type bertrand lens |
| Compensator: | λ , λ/4 quartz cheese block |
| Moving scale: | Moving range: 30*25mm |
| Camera adapter: | C-Mount: 0.5X or 1X |
| Camera: | Optional |
