40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading

Product Categories
Phidix Motion Controls (Shanghai) Co., Ltd.
Contact Now

40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading

  • 1
  • 2

Brand Name : Phidix

Model Number : M12142

Certification : IATF16949，CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : 1 PC/Carton

Color : White

Customization : OEM, ODM

Warranty : 1 year

Drawtube : Binocular

Theory : Biological Microscope

Lead-time : 15-20 Work Days

Magnification : 40X-1000X

Eyepiece : WF10X/18mm

Nosepiece : 4-Position

Viewing Head : 360 Rotatable

Stage : Mechanical stage

Focusing : Coaxial focusing knob, fine focusing is graduated in increment of 2um

Illumination : 3W LED lamp

Contact Now

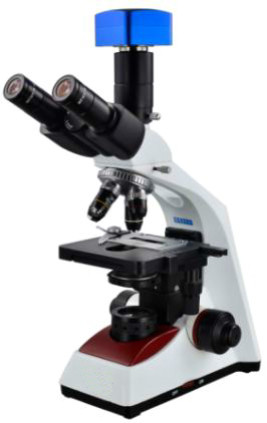

40X-1000X Biological Trinocular Microscope with Various Accessories for Upgrading

M12142 40X-1000X Biological Trinocular Microscope with Various Accessories for Upgrading. This series Microscope has been engineered to deliver exceptional value and performance for clinical and educational applications. The microscope comes equipped with sharp, high contrast achromatic objective and features ergonomic focusing controls, all metal gears and the wide field of view eyepieces in its class. The rugged, die-cast aluminum frame is designed for years of heavy use and is excellent for classroom use.

Features:

- Special design for clinical and educational applications.

- The rugged, die-cast aluminum frame is designed for years of heavy use.

- Diversified accessories for upgrading.

Item Specification M12142A M12142B
Observation Tube: Binocular head inclined at 30° ●
Trinocular head inclined at 30° ●
Interpupillary distance: From 52-75mm ● ●
Eyepiece: WF10X/18mm ●● ●●
Objectives: Achromatic 4X, 10X, 40X(spring), 100X(spring, oil) ● ●
Stage: Mechanical stage with size 134x130mm, X-Y travel is 77x48mm ● ●
Nosepiece: Quadruple Nosepiece ● ●
Focusing: Coaxial focusing knob, fine focusing is graduated in increment of 2um ● ●
Condenser: N.A. 1.25Abbe condenser with iris diaphragm ● ●
Illumination: 3W LED lamp ● ●
Power supply: 100-240V ● ●
Standard accessories: Dust cover, immersion oil, fuse, power cord ● ●
Optional accessories WF10X/20mm eyepiece ○○ ○○
WF10X/18mm pointer eyepiece ○○ ○○
20X achromatic objective ○ ○
60X achromatic objective ○ ○
C-mount adapter ○
digital camera adapter ○
digital camera eyepiece ○

Note: ● means current configuration, ○ means optional

40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading 40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading

M12142A M12142B
