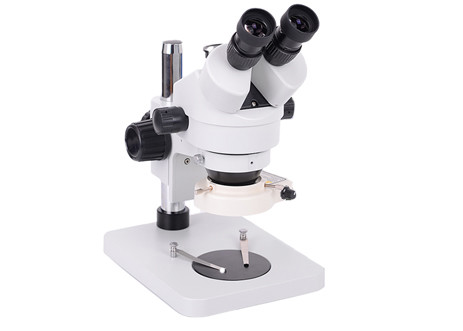

Electronic Trinocular Stereo Stone Setting Microscope For Mobile Phone Repairing
M19107 Electronic Trinocular Stereo Stone Setting Microscope For Mobile Phone Repairing Able to enlarge small objects and form a positive three-dimensional image. Stereo microscopes are widely used in the electronics industry and the inspection, assembly, and repair of small precision parts, as well as biological anatomy and jewelry inspection microscope for mobile repair PCB inspection microscope etc. Industrial Inspection, Computer Parts inspection, Telecom module inspection, scientific teaching tool, Laboratory Research, Medical analysis, School Research tool, Insect dissection examination, Plant dissection examination, Skin examination, Scalp examination, Textile Inspection, Jewelry Inspection, Collections/ Coin Inspection, Printing Inspection, Reading Aid, Teacher Add as Project, Presentation and so on. For Trinocular Microscope, they can Equipped with professional Camera to make you can easy to object and capture what you see.
| Item | Description / Value |
| Head: | Hinged Trinocular |
| Magnification: | Standard 7X-45X,Optional and auxiliary lenses can be extended to 2.1X-270X,Continuous doubling |
| Eyepiece: | Standard WF10X20,High angle wide angle eyepiece, provide convenience for observers wearing glasses |
| Optional eyepiece: | WF10X20mm,WF15X15mm,WF20X10mm,WF25X9mm,WF30X8mm |
| Objective: | 0.7X-4.5X Zoom Range, objective magnification ratio 1:6.4,Ensure image alignment |
| Working Distance: | 100mm, With Auxiliary Objectives 30~165mm |
| Auxiliary Lens: | 0.3X,0.5X,0.7X,1X,1.5X,2X For option |
| Focus arm: | 76mm Diameter, 32mm pole size |
| Base: | B1 column type small flat base(Standard),Other base can be selected, See the base series for details |
| Illumination: | Optional LED Illumination, See LED light source series diagram for details |
| Plate: | Black/White plate |
| Packaging Size: | 39*29*41cm |
| Gross Weight: | 5.50 kg |
|
|
